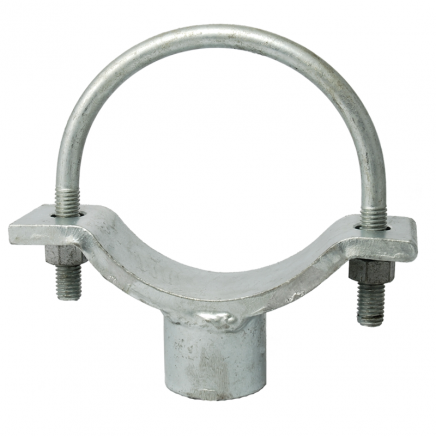

525 Pipe Saddle Support w/ U-Bolt
PIPE HANGERS & SUPPORTS (Guides, Slides & Stanchions)
|
|
|
Designed to be used in conjuction with a base stand to support pipe running close to the floor. U-Bolt secures pipe to saddle
- Materials:
- Carbon steel
- Stainless Steel 304SS & 316SS
- Approvals:
- Complies with MSS SP-58 and SP-69 (Type 36, 37)
- Notes:
- Base stand ordered separately. Requires accurate center line of pipe to floor dimension "L".
Product Sheet
132.02KB
Finishes
Hot Dipped Galvanized (HDG)
Bare Metal
Stainless Steel (316SS)
Stainless Steel (304SS)
Product Sheet
132.02KB
Finishes
Hot Dipped Galvanized (HDG)
Bare Metal
Stainless Steel (316SS)
Stainless Steel (304SS)
Product Sheet
132.02KB
| Pipe Size In. (mm) |
Material/Finish | Standard Box Quantity | Quantity Required (each) |
Add to Quote |
|---|---|---|---|---|
| 3 (80) | 1 | Add | ||
| 4 (100) | 1 | Add | ||
| 5 (125) | 1 | Add | ||
| 6 (150) | 1 | Add | ||
| 8 (200) | 1 | Add | ||
| 10 (250) | 1 | Add | ||
| 12 (300) | 1 | Add | ||
| 14 (350) | 1 | Add | ||
| 16 (400) | 1 | Add | ||
| 18 (450) | 1 | Add | ||
| 20 (500) | 1 | Add | ||
| 24 (600) | 1 | Add | ||
| 30 (750) | 1 | Add | ||
| 36 (900) | 1 | Add |
